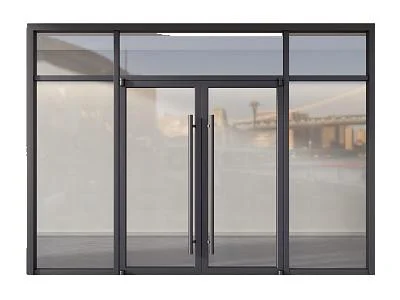

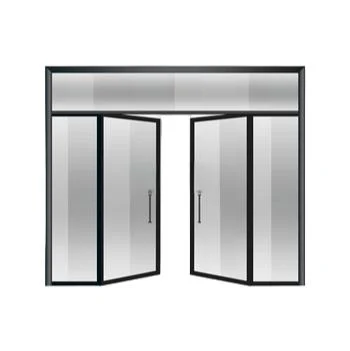

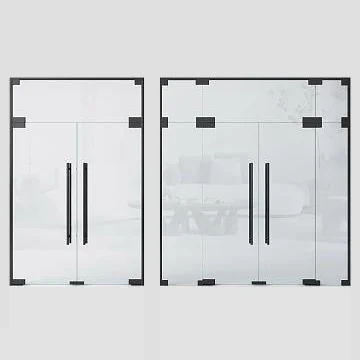

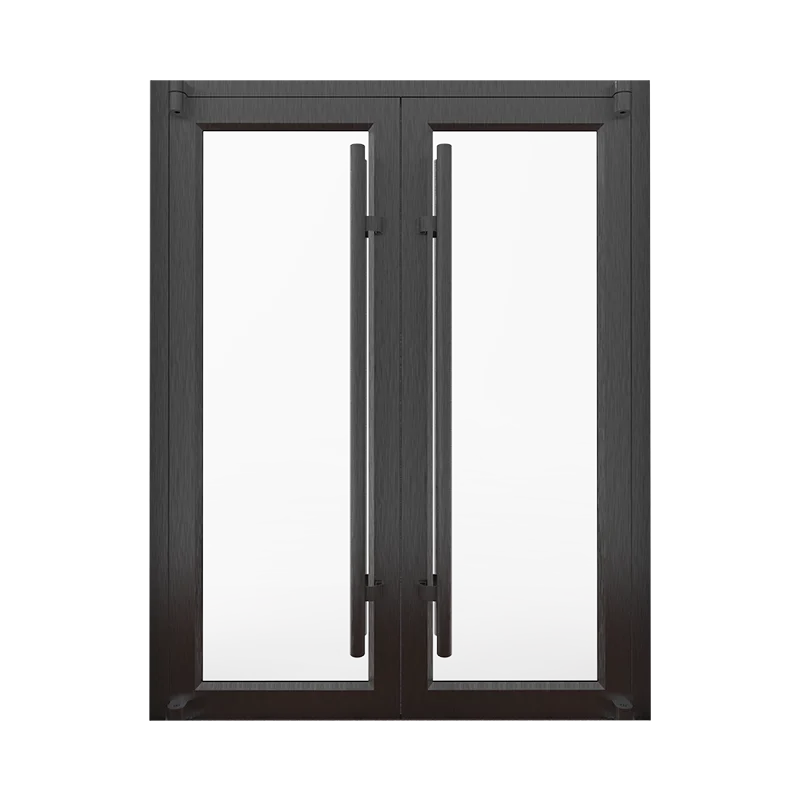

Aluminium Swing Door
The swing door is mounted on one side of the door frame with hinges, allowing it to open and close horizontally. Its core structure consists of the door leaf, door frame, and connecting hinges. Available in a variety of materials—including aluminum alloy, steel, uPVC, and glass—it meets diverse functional and aesthetic needs. With excellent sealing performance, a strong and durable structure, and reliable operation, the swing door is an ideal solution for separating indoor and outdoor spaces. It is widely used in homes, office buildings, hospitals, and more.
Product Data
| Category | Specification |
|---|---|
| Profile Structure | 5-chamber UPVC profile (wall thickness ≥ 2.8 mm) reinforced with 1.5 mm galvanized steel |
| Glazing Options | Standard: Double-glazed insulated glass Optional: Triple glazing / Low-E coating / Laminated safety glass |
| Door Leaf Thickness | 70 series (single leaf) / 85 series (asymmetrical double door) |
| Max Leaf Size | W 1.1m × H 2.3m (max weight ≤ 150 kg) |
| Hardware System | German GU hinges (load capacity 120 kg) + 3-point multi-lock system (EN 1303 compliant) |
| Sealing Performance | 4-layer EPDM weather seal Air tightness: Class 8 / Water tightness: Class 6 (GB/T 7106) |
| Thermal Insulation | U-value ≤ 1.0 W/m²·K (with triple glazing) Up to 50% more energy-efficient than standard doors |
| Sound Insulation | Tested sound reduction of 42 dB |
| Wind Load Resistance | Up to Class 9 (≥ 5000 Pa), top GB level |
| Surface Finishes | Foil Laminated: Pure White / Graphite Grey / Champagne Gold Woodgrain: Red Oak / Walnut / Teak (Color stability ΔE ≤ 4) |
Product Features
Simple Structure
The swing door consists of a door frame, door leaf, and hardware accessories. With a clear structure, it is easy to install and maintain.
Energy-Saving & Eco-Friendly
Made with high-performance thermal insulation materials to effectively reduce energy loss and improve energy efficiency.
Security & Anti-Theft
Reinforced structure with multiple locking points provides solid and reliable protection for your property.
Excellent Sealing Performance
The door leaf closes tightly to prevent air, moisture, and other external elements from entering. Suitable for various climate conditions.
Product Delivery Process
01
Accurate CAD Design
Customized according to drawings. Our professional team ensures a 1:1 restoration of your requirements for perfect size and style matching.
02
High-Standard Production
Manufactured with intelligent production processes that meet CE and ISO certifications for global compliance.
03
Strict Quality Control
Every unit undergoes rigorous testing, including over 100,000 durability cycles. Dual-layer safety assurance ensures stable and reliable operation.
04
Secure Transportation
Professionally packed with shockproof and damage-resistant materials. Full logistics tracking provided for peace of mind.
05
Experienced Installation Support
Standardized installation procedures ensure a tight fit, structural stability, and long-term durability.
Premium Hardware
Designed for a More Convenient and Comfortable Experience
01
Frame Profile
6063-T5 aluminum alloy, with strength up to 150 MPa. Outstanding performance in wind pressure resistance, seismic resistance, and impact resistance enhances overall safety and long-term durability.
02
Glass Panel
Customized options available: Over 30 types of glass to meet your specific needs and ensure a perfect fit for your project.
03
Handle
Stylish & Ergonomic. Automotive-grade painting for a refined, fade-resistant finish. Ergonomic design minimizes fatigue and enhances operation comfort and efficiency.
04
Hinge
High-Precision Die Casting & H7-Level Processing. Tolerance of ±0.1 mm, dense and pore-free. Shaft concentricity ≤0.05 mm ensures smooth, silent operation for over 100,000 open-close cycles without wear.
Project Case
Xiaomi Headquarters, Beijing
The aluminum alloy casement door features a front frame width of only 16mm, achieving stable bending resistance for a 4-meter-tall door panel without mullion support through the use of titanium-magnesium aluminum alloy and 2.0mm thickened extruded profiles. The surface is treated with vacuum sputtered matte finish, ensuring seamless integration with the architectural design.
Kingsoft Headquarters, Wuhan
Adopted aerospace-grade high-strength aluminum frames combined with safety glass for a sleek and stable structure.
Ensures efficient access and multi-level protection, creating an open space that reflects a futuristic corporate identity.
