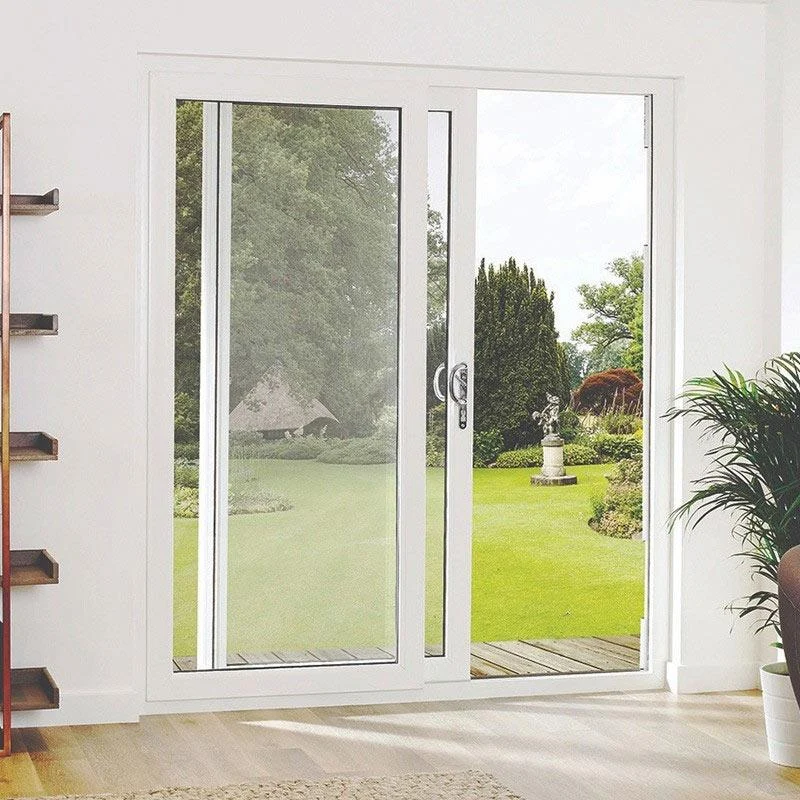

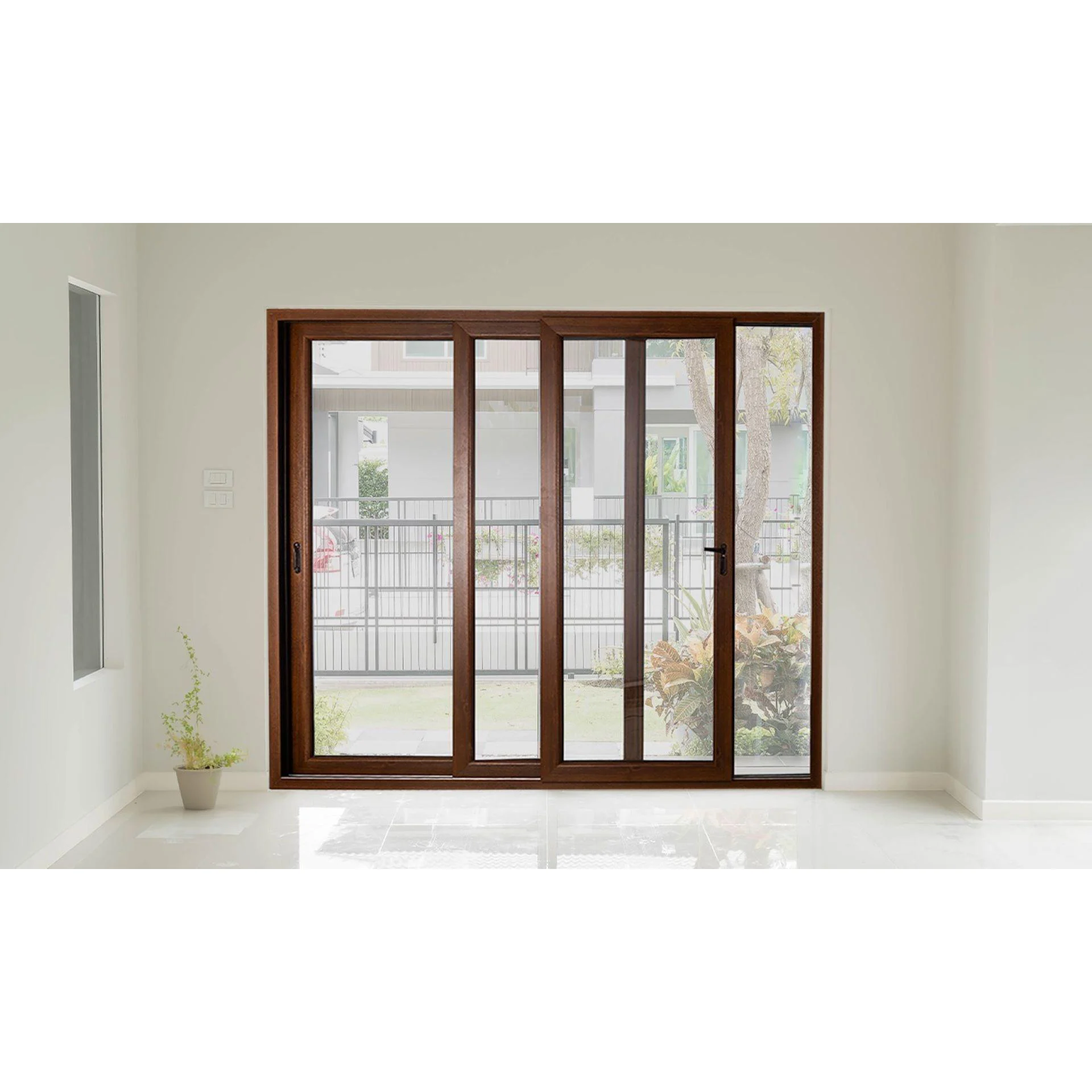

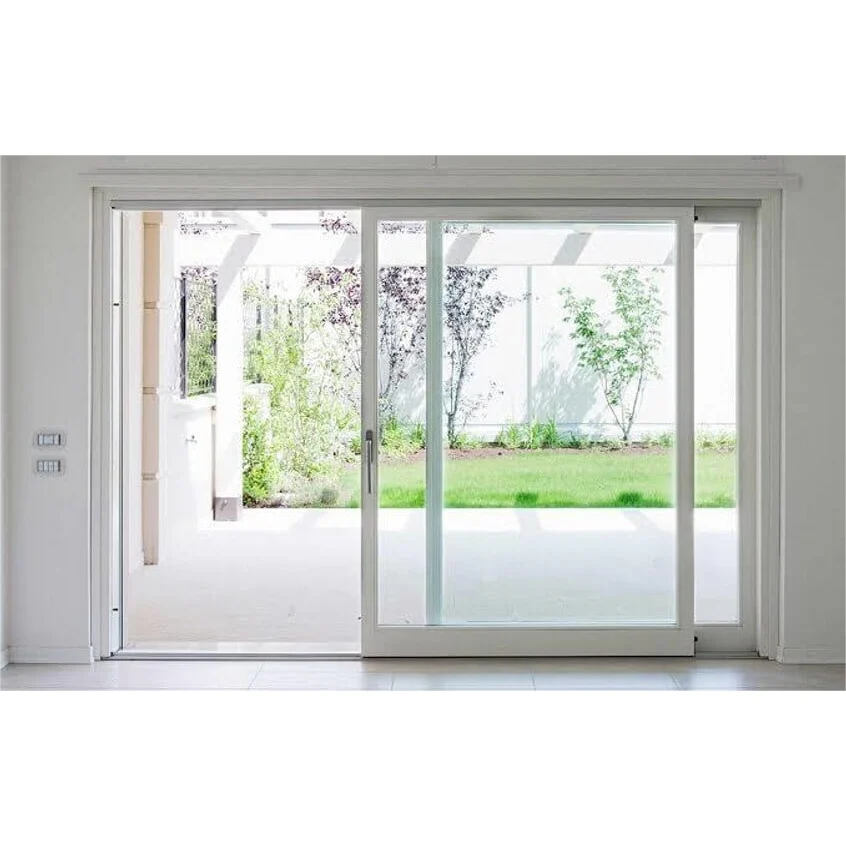

UPVC Manual Sliding Doors
UPVC sliding doors are mainly made of polyvinyl chloride (UPVC). They achieve horizontal push-pull opening through slide rails and are widely used in home, commercial, and other scenarios.
Their appearance is diverse: they can be paired with transparent, frosted, or patterned glass, and their surfaces can mimic wood grain, solid colors, etc., adapting to different decoration styles.
They are easy to install, with smooth and quiet slide rails. Their opening method saves space, making them suitable for small apartments. Daily cleaning is simple, and they are highly durable with low maintenance costs, combining practicality and aesthetics.
Product Data
| Item | Description |
|---|---|
| Material | Multi-chamber UPVC profile with reinforced galvanized steel core |
| Sash Thickness | 80 / 90 series available (wall thickness ≥ 3.0 mm) |
| Glazing | Standard: Double-glazed insulated glass Optional: Triple-glazing / Low-E coating / Laminated safety glass |
| Max Sash Size | Width: 1.5m × Height: 2.4m (Max weight ≤ 200 kg per sash) |
| Track System | Concealed recessed track with dust-resistant design and self-draining base |
| Hardware System | German heavy-duty rollers (Load capacity: 300 kg) Multipoint locking for anti-burglary protection |
| Thermal Insulation | U-value as low as 1.1 W/m²·K (with triple glazing) |
| Acoustic Insulation | Sound reduction up to 38 dB (lab-tested) |
| Wind Load Resistance | Certified to Class 12 – Highest GB national standard |
| Color Options | Pure White / Graphite Grey / Sand Brown Woodgrain Finish: Walnut / Oak Metallic Finish: Champagne Gold / Titanium Black |
Product Features
Easy to Install and Transport
Compared to doors and
windows made of other materials, uPVC doors and windows offer higher cost performance, making them suitable for most residential and commercial buildings.
Silent and Energy-Efficient
Automotive-grade EPDM triple seals paired with insulated tempered glass effectively block 45dB of noise (tested data), transforming a bustling street into a quiet study-like environment.
Featuring a multi-chamber structure and triple seals, it achieves a heat transfer coefficient (K-value) of ≤ 1.3 W/(m²·K).
Lifetime Anti-Corrosion Guardian
Virgin UPVC profiles combined
with deep-sea grade anti-corrosion formula have passed a 6,000-hour salt spray test, ensuring no rusting for 30 years in acid rain-prone or coastal areas.
Color
Customization Options
Offering over 200 spray-paint colors
Custom color options are available upon specific customer requests, ensuring doors and windows perfectly integrate with the overall architectural style and enhance the visual appeal of the space.
Product Delivery Process
01
Accurate CAD Design
Customized according to drawings. Our professional team ensures a 1:1 restoration of your requirements for perfect size and style matching.
02
High-Standard Production
Manufactured with intelligent production processes that meet CE and ISO certifications for global compliance.
03
Strict Quality Control
Strict Testing Throughout the Entire Process
With over 1 million durability verifications and dual safety protection safeguards, stable and reliable operation is ensured.
04
Secure Transportation
Professionally packed with shockproof and damage-resistant materials. Full logistics tracking provided for peace of mind.
05
Experienced Installation Support
Standardized installation procedures ensure a tight fit, structural stability, and long-term durability.
Premium Hardware
Designed for a More Convenient and Comfortable Experience
01
Tempered Glass
Customization Options
Over 30 choices available Based on your needs, we provide customized glass solutions that perfectly align with your requirements.
02
Easy to Install
The entire window is delivered as a
complete unit, requiring no secondary assembly. It can be quickly installed immediately after delivery.
03
Hinge
Special design with a load-bearing core enables sash rotation.
04
Color
Special desThe surface can undergo special treatments such as film lamination (e.g., wood grain film, stone-like film) or spraying to enhance aesthetics and weather resistance. The color and texture of the surface film can also be customized according to customer requirements.ign with a load-bearing core enables sash rotation.
05
Handle
Stylish Appearance
High Comfort Adopting automotive-grade baking paint technology, the appearance is exquisite and fade-resistant. The ergonomic design better meets human needs, reduces fatigue and injuries, and improves operational efficiency.
Project Case

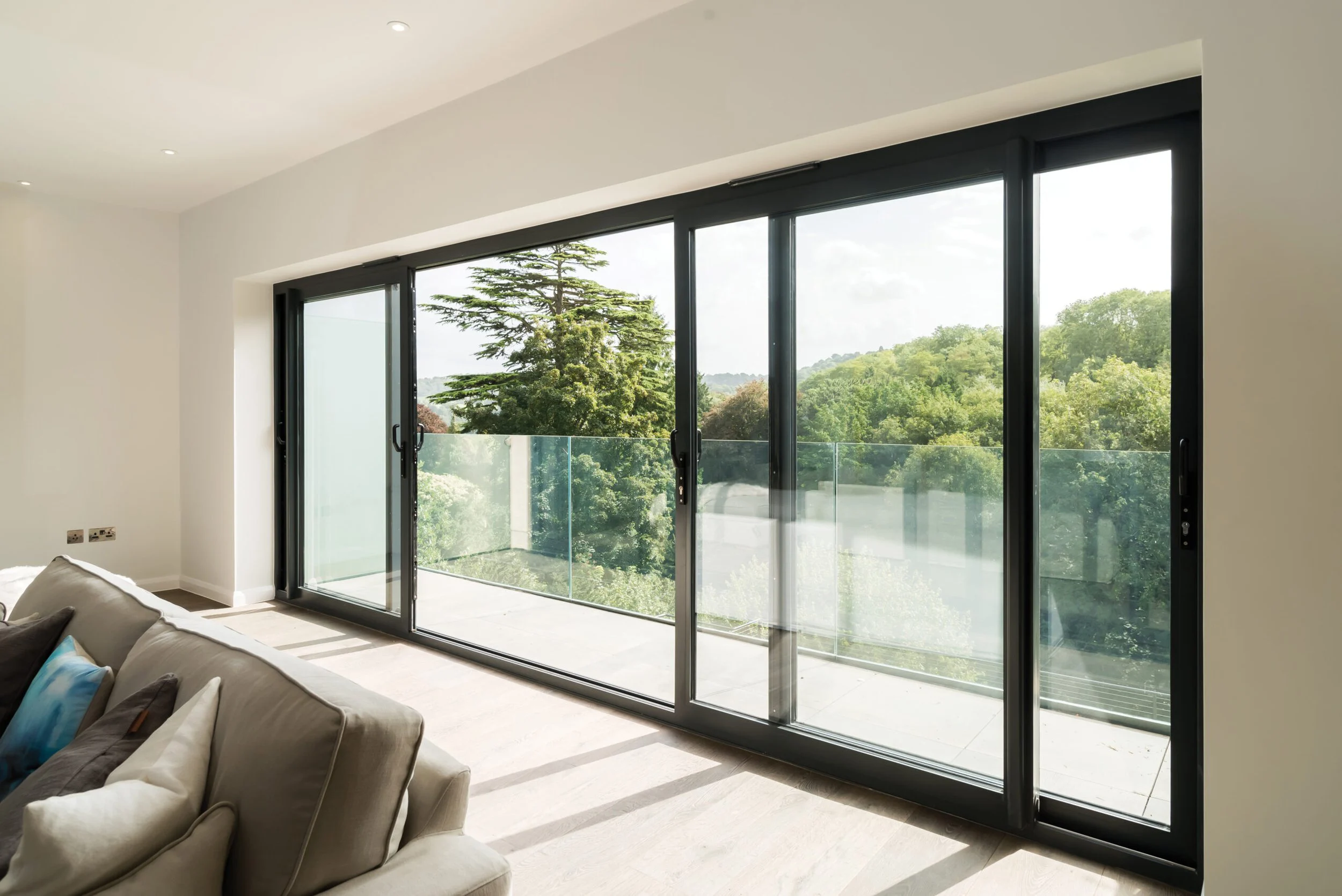

Resort hotels install UPVC sliding doors on the balconies of guest rooms. Featuring a narrow-frame design paired with large-area glass, they allow guests to fully enjoy the beautiful scenery outside the window while ensuring excellent lighting.
The sliding doors open and close smoothly, and their good airtightness effectively blocks external noise and mosquitoes. With simple daily maintenance, they save hotels a great deal of manpower and material resources, earning high praise from both guests and hotel management.
UPVC sliding doors adopt a narrow-frame design paired with large-area double-layer insulated glass, which not only ensures excellent lighting effects but also enhances sound and heat insulation performance.
Their unique track system enables the doors to slide smoothly without obstruction, making operation easy and convenient. Moreover, they do not take up extra space when opened, making the originally small balcony appear more spacious.
The UPVC material boasts excellent weather resistance and corrosion resistance; it is not prone to deformation or fading. Even after long-term exposure to sunlight or rain erosion, it can always maintain good appearance and performance
